Compact / CAMERA REFERENCE

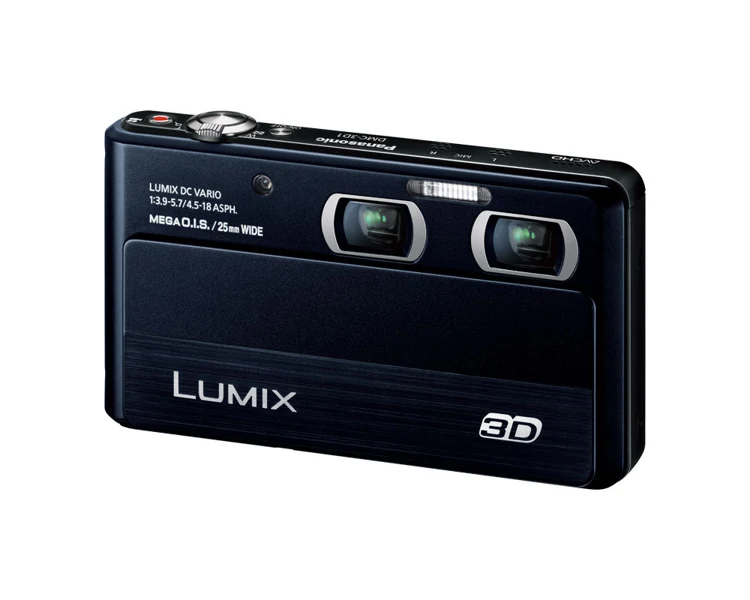

Lumix DMC-3D1

Panasonic

Catalogue announcement: 7 November 2011

01 / TECHNICAL RECORD

Specifications

Catalogue specifications. Source: DPReview historical specification record ↗.

Sensor and files

Effective pixels: 12 megapixels
Sensor size: 1/2.3" (6.17 x 4.55 mm)
Sensor type: CMOS
Max resolution: 4000 x 3000
ISO: Auto, Hi Auto (1600-6400), 100, 200, 400, 800, 1600,3200
Boosted ISO (minimum): 1600
Boosted ISO (maximum): 6400
Uncompressed format: No

Lens and focus

Focal length (equiv.): 25–100 mm
Maximum aperture: F3.9–5.7
Optical zoom: 4×
Number of focus points: 23
Manual focus: No
Macro focus range: 5 cm (1.97″)
Image stabilization: Optical

Exposure and shooting

Minimum shutter speed: 60 sec
Maximum shutter speed: 1/1300 sec
Exposure compensation: ±2 (at 1/3 EV steps)
Metering modes: Multi
Aperture priority: No
Shutter priority: No
Built-in flash: Yes
External flash: No
Timelapse recording: No

Video and audio

Resolutions: 1920 x 1080 (60, 30 fps), 1280 x 720 (60, 30 fps), 640 x 480 (30 fps)
Format: MPEG-4, AVCHD, Motion JPEG
Microphone: Stereo

Viewfinder and screen

Viewfinder type: None
Screen size: 3.5″
Screen dots: 460,000
Articulated LCD: No
Touch screen: Yes

Body and connections

Storage types: SD/SDHC/SDXC, Internal
Battery description: Lithium-Ion rechargeable battery & charger
Battery Life (CIPA): 200
Weight (inc. batteries): 193 g (0.43 lb / 6.81 oz)
Dimensions: 108 x 58 x 24 mm (4.25 x 2.28 x 0.94″)
USB: USB 2.0 (480 Mbit/sec)
HDMI: Yes
Remote control: No

02 / INDEPENDENT COVERAGE

Reviews and field reports

An independent review has not yet been added to this record.

03 / PROVENANCE

Sources and dates

DPReview product record ↗

A catalogue year identifies the year held in the source dataset. Announcement dates and retail months are labelled separately. Specifications can vary by region, firmware and recording mode; use the linked manufacturer documentation for those conditions.
