Mirrorless / CAMERA REFERENCE

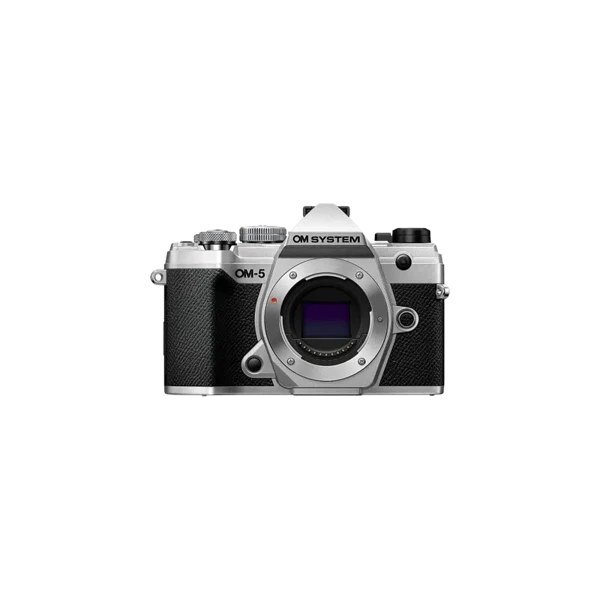

OM-5
OM SYSTEM
Catalogue release year:
01 / TECHNICAL RECORD
Specifications
Catalogue specifications. Source: CameraDatabase specification catalogue (MIT) ↗.
Specifications
- Megapixels
- 20.4
- Sensor size
- Four Thirds (17.3 x 13 mm)
- Sensor type
- CMOS
- Max. image resolution
- 5184 x 3888
- Max. video resolution
- 4096x2160 (24p)
- ISO
- Auto, 200-25600 (extends to 64-25600)
- Min. shutter speed
- 60 sec
- Max. shutter speed
- 1/32000 sec
- Screen size
- 3"
- Screen resolution
- 1,037,000 dots
- Viewfinder
- Electronic
- Storage types
- SD/SDHC/SDXC, UHS-II
- Battery
- BLS-50 lithium-ion battery
- Weight
- 366 g
- Dimensions
- 125.3 x 85.2 x 49.7 mm
- USB
- USB 2.0 (480 Mbit/sec)
- Aperture priority
- Yes
- Shutter priority
- Yes
- Exposure Compensation
- ±5 EV (in 1/3 EV, 1/2 EV steps)
02 / INDEPENDENT COVERAGE
Reviews and field reports
An independent review has not yet been added to this record.
03 / PROVENANCE
Sources and dates
A catalogue year identifies the year held in the source dataset. Announcement dates and retail months are labelled separately. Specifications can vary by region, firmware and recording mode; use the linked manufacturer documentation for those conditions.
Archive updated 2026-10-04. Archive coverage and dataset credits →
